Single channel transistor output optocoupler, featuring 5kV isolation voltage and 35V collector-emitter voltage. This surface mount device offers a 400% current transfer ratio and a maximum collector current of 50mA. With a 200mV collector-emitter saturation voltage and 200mW maximum power dissipation, it operates from -30°C to 110°C.
PackageSMD/SMT
MountingSurface Mount
Power70mW
Quick Jump:
Technical Specifications
Vishay LTV-817S-TA1-C technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 400% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 35V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 70mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTV-817S-TA1-C Datasheet
Download the complete datasheet for Vishay LTV-817S-TA1-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

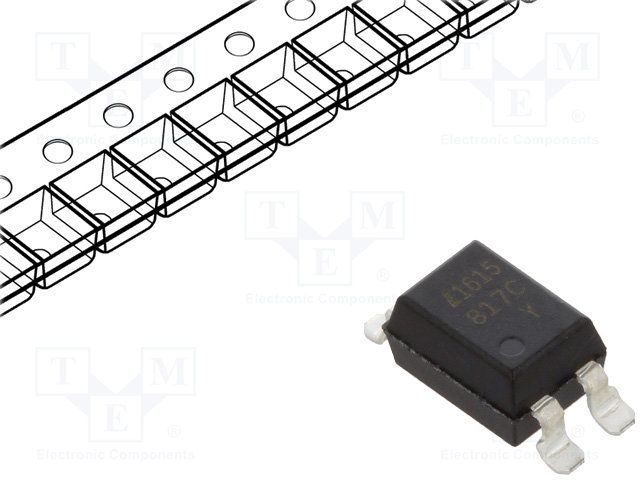

Product Images
