Dual-channel optocoupler featuring 5kV isolation voltage and 80V collector-emitter voltage. This general-purpose optoisolator offers a 600% current transfer ratio and 50mA maximum output current per channel. Designed for through-hole mounting in an 8-pin PDIP package, it operates within a -30°C to 100°C temperature range. The device boasts a 200mV collector-emitter saturation voltage and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Vishay LTV-826 technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Output Voltage
80V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
200mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay LTV-826 Datasheet
Download the complete datasheet for Vishay LTV-826 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

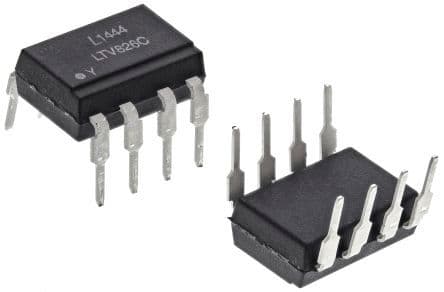

Product Images
