White LED emitter, through-hole mount, radial package. Features a clear, colorless, round, domed lens with a 35° viewing angle. Operates with a 30mA forward current, 5V reverse voltage, and 114mW power dissipation. Delivers 4200mcd luminous intensity with a correlated color temperature of x=0.3/y=0.3. Suitable for operation between -25°C and 80°C, this lead-free and RoHS compliant component is supplied in bulk packaging.
PackageRadial
MountingThrough Hole
Power114mW
Quick Jump:
Technical Specifications
Vishay LTW-2R3D7 technical specifications.
General
| Package/Case | Radial |
| Color | White |
| Correlated Color Temperature (CCT) | x=0.3/y=0.3 |
| Depth | 5.9mm |
| Diameter | 5mm |
| Forward Current | 30mA |
| Height | 8.7mm |
| Illumination Color | White |
| Lead Free | Lead Free |
| Length | 5.9mm |
| Lens Color | Colorless |
| Lens Size | 5mm |
| Lens Style | Round, Domed, Dome, Diffused, Colorless, Circular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 4200mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 114mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 35° |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTW-2R3D7 Datasheet
Download the complete datasheet for Vishay LTW-2R3D7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

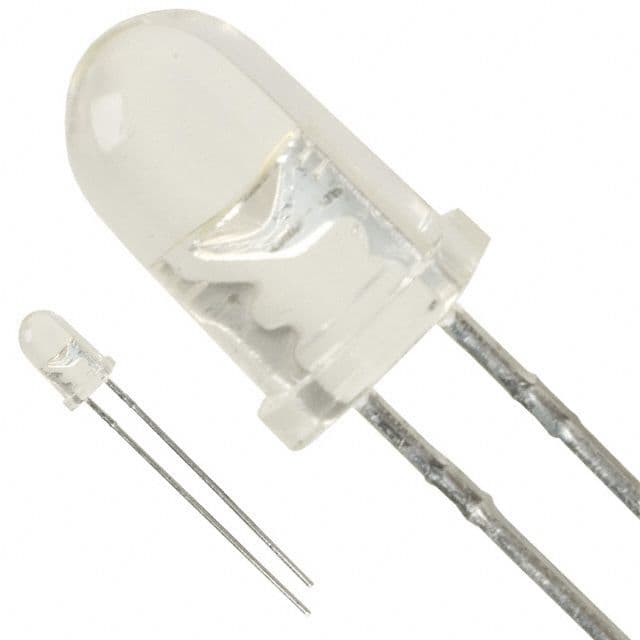

Product Images
