Surface mount chip LED emitter, white illumination, featuring a 0603 package. This general-purpose LED operates with a 5mA forward current and a 5V reverse voltage, delivering 180mcd luminous intensity. It offers a wide 130° viewing angle and a correlated color temperature of x=0.304/y=0.301. The component is lead-free, RoHS compliant, and operates within a temperature range of -30°C to 85°C.
Package0603
MountingSurface Mount
Power72mW
Quick Jump:
Technical Specifications
Vishay LTW-C191DS5 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Package/Case | 0603 |
| Color | White |
| Correlated Color Temperature (CCT) | x=0.304/y=0.301 |
| Depth | 0.8mm |
| Forward Current | 5mA |
| Height | 0.55mm |
| Illumination Color | White |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | Yellow |
| Lens Style | Colored, Rectangular, Tinted |
| Luminous Intensity | 180mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 72mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTW-C191DS5 Datasheet
Download the complete datasheet for Vishay LTW-C191DS5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

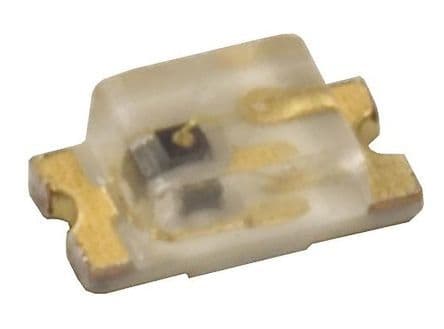

Product Images
