White LED emitter, surface mount, 0603 (1608 metric) case code. Features diffused, tinted, colored, rectangular lens style with a 130° viewing angle. Operates with a 20mA forward current, 5V reverse voltage, and 70mW power dissipation. Offers a luminous intensity of 146mcd and a correlated color temperature of x=0.294/y=0.286. Dimensions are 3.2mm length, 0.8mm width, 1mm depth, and 0.4mm height. Suitable for operating temperatures from -20°C to 80°C.
Package0603
MountingSurface Mount
Power70mW
Quick Jump:
Technical Specifications
Vishay LTW-C193TS5 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | White |
| Correlated Color Temperature (CCT) | x=0.294/y=0.286 |
| Depth | 1mm |
| Forward Current | 20mA |
| Height | 0.4mm |
| Illumination Color | White |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Style | Diffused, Tinted, Colored, Rectangular |
| Luminous Intensity | 146mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 70mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTW-C193TS5 Datasheet
Download the complete datasheet for Vishay LTW-C193TS5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

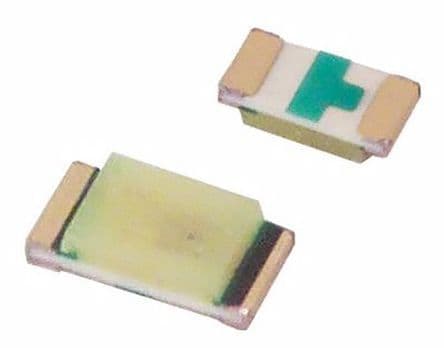

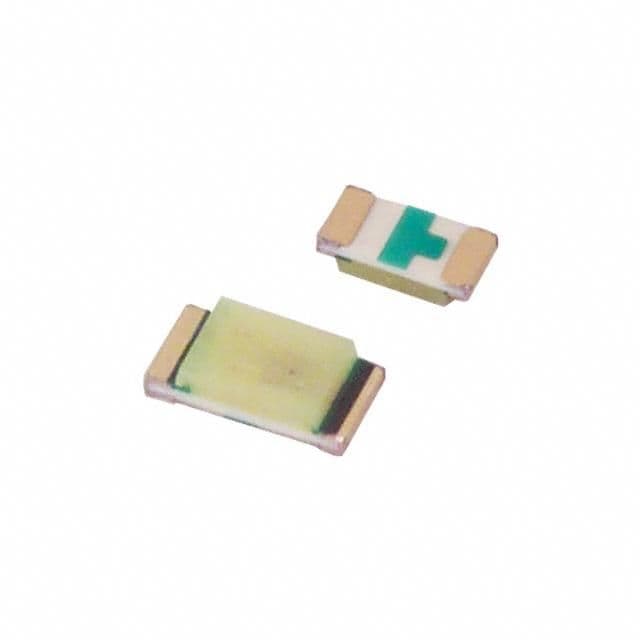

Product Images
