Surface mount optoisolator featuring 5kV isolation voltage and a TRIAC output. This single-channel device operates with a 50mA forward current and a 250µA hold current, supporting up to 400V output. Designed for surface mounting, it functions across an operating temperature range of -40°C to 100°C with a maximum power dissipation of 330mW. The component boasts a nominal input voltage of 1.15V and a turn-on delay time of 20µs.
PackageSMD/SMT
MountingSurface Mount
Power330mW
Quick Jump:
Technical Specifications
Vishay MOC3022S technical specifications.
General
Package/Case
SMD/SMT
Forward Current
50mA
Hold Current
250uA
Isolation Voltage
5kV
Max Input Current
50mA
Max Input Voltage
1.5V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
330mW
Mount
Surface Mount
Nominal Input Voltage
1.15V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Voltage
400V
Packaging
Rail/Tube
Power Dissipation
330mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Turn-On Delay Time
20us
Compliance
RoHS
Compliant
Datasheet
Vishay MOC3022S Datasheet
Download the complete datasheet for Vishay MOC3022S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

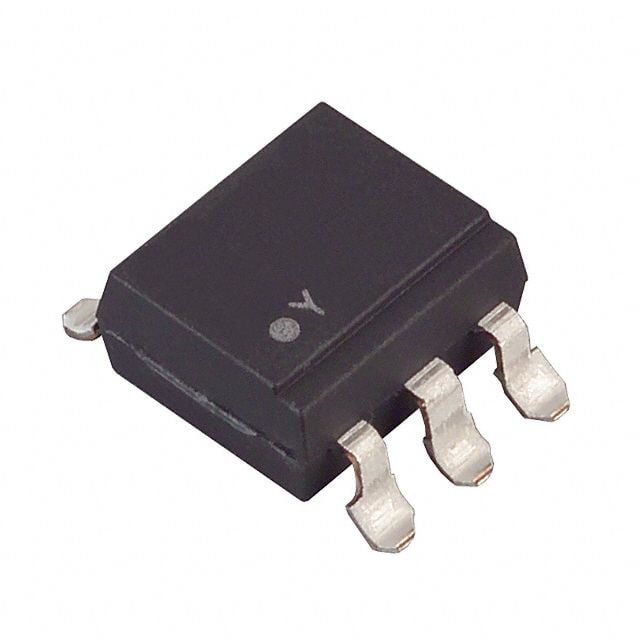

Product Images
