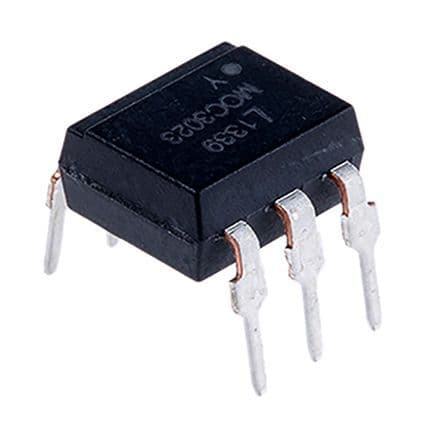

The MOC3023 is a single-channel optocoupler with a maximum operating temperature of 100°C and a minimum operating temperature of -40°C. It features a maximum input current of 50mA and a maximum output voltage of 400V. The device is packaged in a DIP package and is mounted through a hole. It is RoHS compliant and has a hold current of 250uA with an isolation voltage of 5kV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay MOC3023 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Hold Current | 250uA |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 400V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Output Voltage | 400V |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Vishay MOC3023 to view detailed technical specifications.
