High-performance optoisolator featuring 5kV isolation voltage, designed for TRIAC driver applications. This general-purpose optocoupler offers a 600V output voltage and operates with a nominal input voltage of 1.2V, requiring a maximum input current of 50mA. Encased in a PDIP package for through-hole mounting, it boasts a hold current of 400µA and a turn-on delay time of 20µs. Operating across a temperature range of -40°C to 100°C, this lead-free and RoHS compliant component ensures reliable isolation in demanding electronic systems.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay MOC3063 technical specifications.
General
| Package/Case | PDIP |
| Forward Current | 50mA |
| Hold Current | 400uA |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Input Current | 50mA |
| Max Input Voltage | 1.4V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 600V |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Nominal Input Voltage | 1.2V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Output Voltage | 600V |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 20us |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MOC3063 Datasheet
Download the complete datasheet for Vishay MOC3063 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

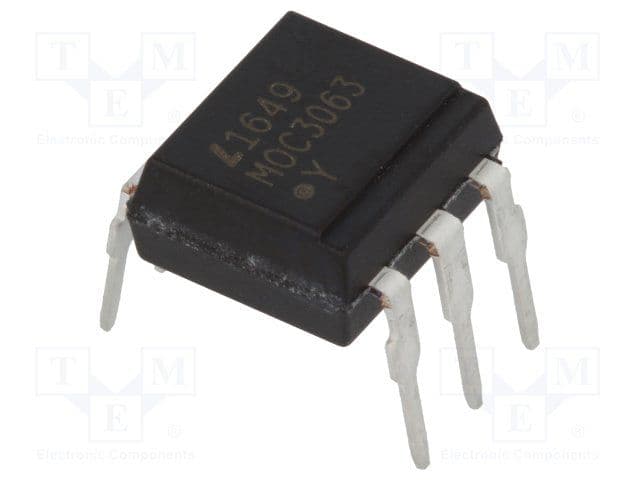

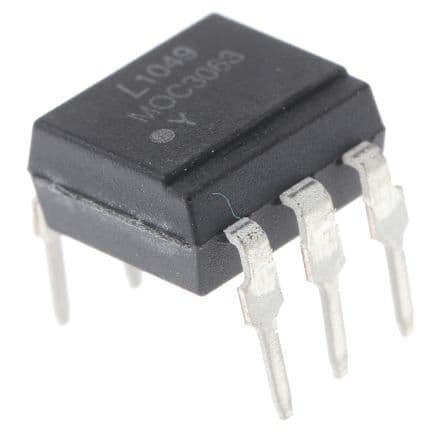

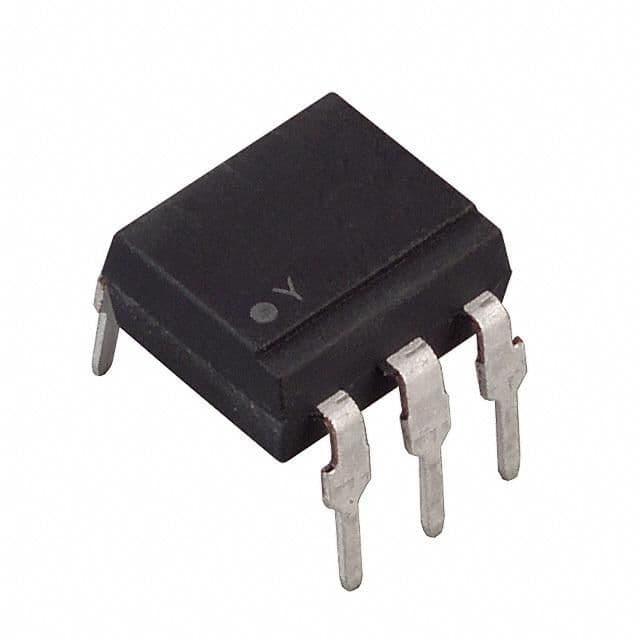

Product Images
