General purpose transistor output optocoupler featuring 5.3kV isolation voltage and 100V collector-emitter breakdown voltage. This single-channel device offers a 200% current transfer ratio and a maximum collector current of 100mA, with a forward current of 60mA. Packaged in a PDIP through-hole mount, it operates across a temperature range of -55°C to 100°C and is UL approved.
PackagePDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH601-3 technical specifications.
General
| Approvals | UL |
| Package/Case | PDIP |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 100V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 200% |
| Fall Time | 14us |
| Forward Current | 60mA |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 100V |
| Max Power Dissipation | 150mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| DC Rated Voltage | 1.25V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay SFH601-3 Datasheet
Download the complete datasheet for Vishay SFH601-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

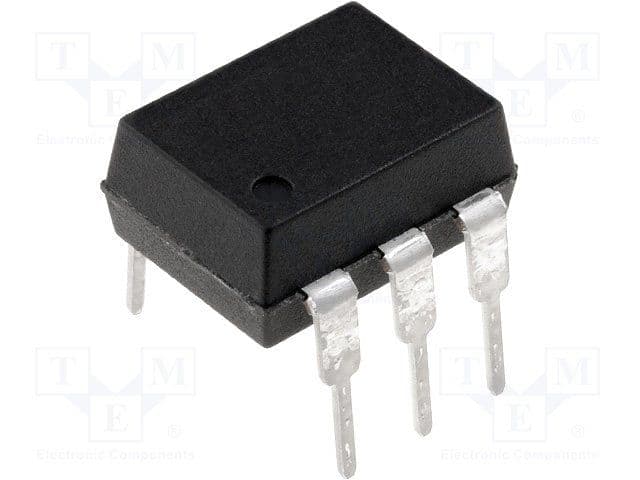

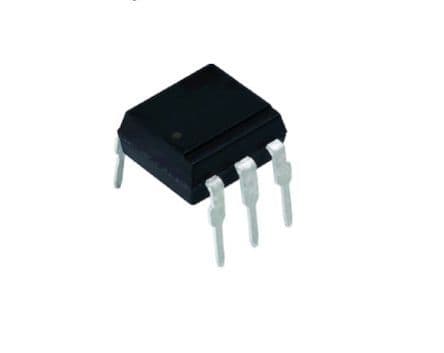

Product Images
