Surface mount transistor output optocoupler featuring 5.3kV isolation and a 1-element, 4-pin configuration. Offers a 70V collector-emitter voltage, 100mA maximum collector current, and 60mA forward current. With a 400mV collector-emitter saturation voltage and 11µs fall time, this RoHS compliant component operates from -55°C to 100°C.
PackageSMD/SMT
MountingSurface Mount, PCB
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH6106-1T technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 80% |
| Fall Time | 11s |
| Forward Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SFH6106-1T Datasheet
Download the complete datasheet for Vishay SFH6106-1T to view detailed technical specifications.
No datasheet is available for this part.

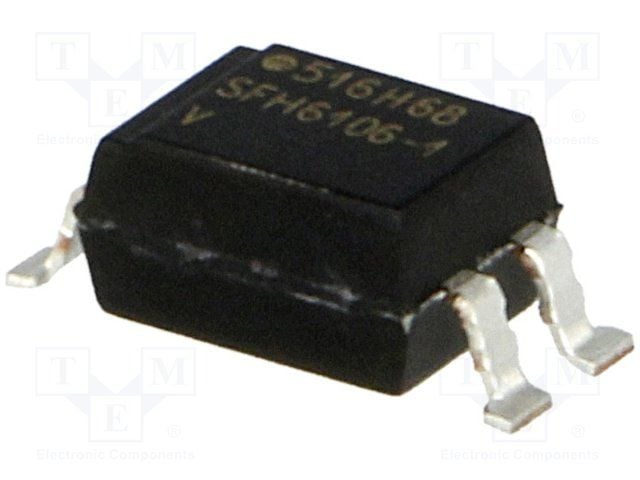

Product Images
