1-channel DC input optocoupler with transistor DC output, featuring a 70V collector-emitter breakdown voltage and 400mV collector-emitter saturation voltage. Offers a 320% current transfer ratio and 5.3kV isolation voltage. Designed for through-hole PCB mounting in a 4-pin DIP package, it operates from -55°C to 100°C with a 60mA forward current and 100mA max collector current.
PackageDIP
MountingThrough Hole, PCB
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH610A-4 technical specifications.
General
Approvals
IEC, BSI, CSA
Package/Case
DIP
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
320%
Fall Time
15s
Forward Current
60mA
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
150mW
Mount
Through Hole, PCB
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
4000
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
DC Rated Voltage
1.25V
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SFH610A-4 Datasheet
Download the complete datasheet for Vishay SFH610A-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

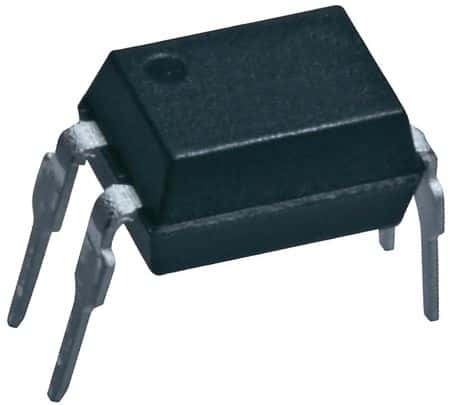

Product Images
