General purpose optocoupler featuring a single channel transistor output. Offers 5.3kV isolation voltage and a 70V collector-emitter voltage. With a maximum collector current of 100mA and a forward current of 60mA, it provides a 80% current transfer ratio. Designed for surface mount and through-hole applications, this RoHS compliant component operates within a -55°C to 100°C temperature range.
PackagePDIP
Voltage6V
MountingSurface Mount, Through Hole
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH6156-1X001T technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
80%
Fall Time
11us
Forward Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Lead Free
Lead Free
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
150mW
Mount
Surface Mount, Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
150mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Voltage
6V
Compliance
RoHS
Compliant
Datasheet
Vishay SFH6156-1X001T Datasheet
Download the complete datasheet for Vishay SFH6156-1X001T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

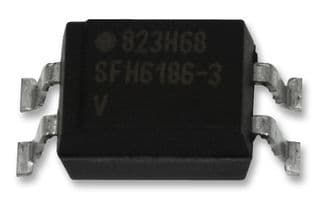

Product Images
