General purpose optocoupler featuring a single channel transistor output. This surface mount device offers a 70V collector-emitter voltage and a 400mV collector-emitter saturation voltage. It operates with a 60mA forward current and provides a 200% current transfer ratio, with a maximum output current of 50mA per channel. Designed for a wide temperature range of -55°C to 100°C, this RoHS compliant component is supplied in tape and reel packaging.
PackageSMD/SMT
MountingSurface Mount, Through Hole
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH6156-3X001T technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
200%
Forward Current
60mA
Height
4.059mm
Input Type
DC
Lead Free
Lead Free
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Mount
Surface Mount, Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
150mW
Reverse Breakdown Voltage
6V
Reverse Voltage
6V
RoHS Compliant
Yes
Turn-Off Delay Time
2.3us
Turn-On Delay Time
3us
Compliance
RoHS
Compliant
Datasheet
Vishay SFH6156-3X001T Datasheet
Download the complete datasheet for Vishay SFH6156-3X001T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

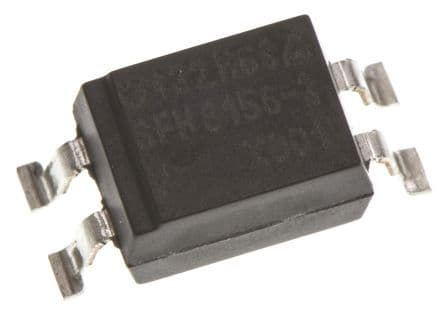

Product Images
