Single-channel DC input optocoupler with transistor DC output, featuring a 70V collector-emitter breakdown voltage and 400mV collector-emitter saturation voltage. Offers a 125% current transfer ratio and 50mA output current per channel, with a maximum collector current of 100mA. Operates with 60mA forward and input current, and provides 5.3kV isolation voltage. Packaged in a 4-pin PDIP for through-hole mounting, with a temperature range of -55°C to 100°C.
PackagePDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications

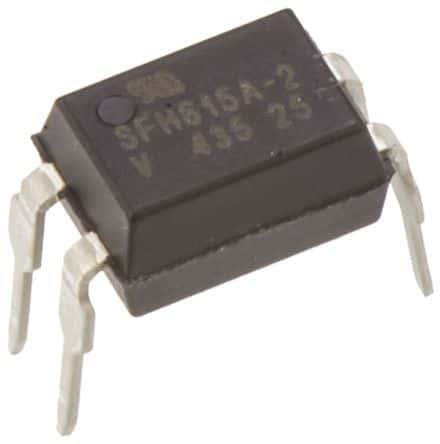

Vishay SFH615A-2 technical specifications.
General
Approvals
UL
Package/Case
PDIP
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
125%
Fall Time
14us
Forward Current
60mA
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Isolation Voltage-Max
5.3kV
Lead Free
Lead Free
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
150mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
4000
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
6V
DC Rated Voltage
1.25V
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SFH615A-2 Datasheet
Download the complete datasheet for Vishay SFH615A-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
