General purpose transistor output optocoupler featuring 5.3kV isolation voltage and 70V collector-emitter breakdown voltage. This 1-element device offers a 125% current transfer ratio and a maximum collector current of 100mA. Designed for through-hole mounting in a PDIP package, it operates across a temperature range of -55°C to 110°C. Key specifications include a 60mA forward current and 150mW power dissipation.
PackagePDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH617A-2 technical specifications.
General
Approvals
UL
Package/Case
PDIP
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
125%
Fall Time
14us
Forward Current
60mA
Height
4.3mm
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Isolation Voltage-Max
5.3kV
Lead Free
Lead Free
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
150mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Voltage
6V
Turn-Off Delay Time
23us
Turn-On Delay Time
4.2us
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SFH617A-2 Datasheet
Download the complete datasheet for Vishay SFH617A-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

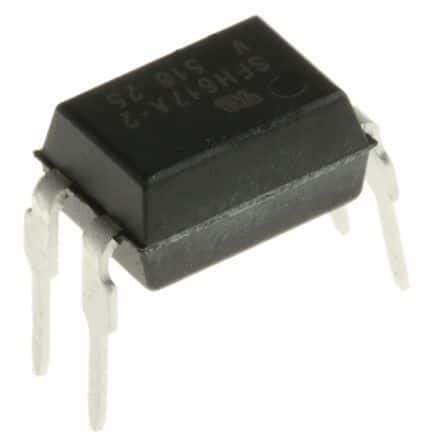

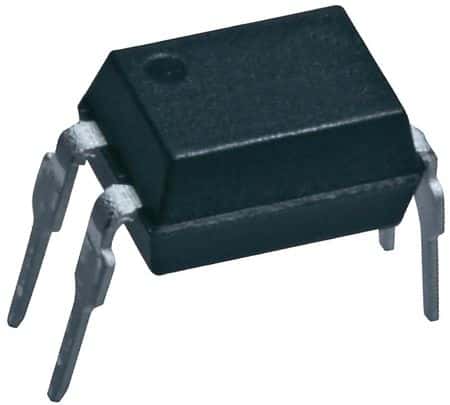

Product Images
