Single-channel DC input optocoupler with transistor output, featuring a 5.3kV isolation voltage and a 400mV collector-emitter saturation voltage. This surface-mount device offers a 200% current transfer ratio, a 55V collector-emitter voltage, and a maximum collector current of 100mA. Operating within a temperature range of -55°C to 100°C, it has a 150mW power dissipation and a 6µs turn-on delay.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH6186-3 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
55V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
200%
Forward Current
60mA
Height
4.059mm
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Isolation Voltage-Max
5.3kV
Lead Free
Lead Free
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
55V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
4000
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Voltage
6V
Turn-Off Delay Time
5.5us
Turn-On Delay Time
6us
DC Rated Voltage
1.1V
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SFH6186-3 Datasheet
Download the complete datasheet for Vishay SFH6186-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

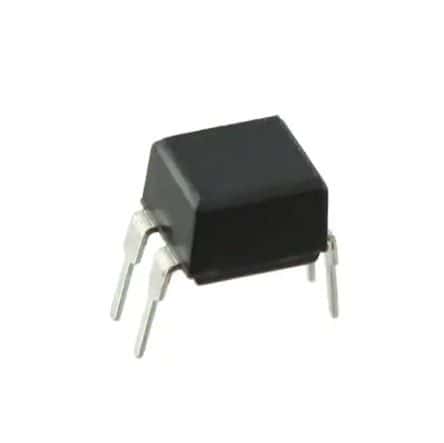

Product Images
