Surface mount transistor output optocoupler featuring 5.3kV isolation voltage and 55V collector-emitter breakdown voltage. This single-channel device offers a 500% current transfer ratio with a maximum collector current of 100mA and a maximum input current of 60mA. Operating across a temperature range of -55°C to 100°C, it provides 150mW power dissipation and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount, PCB
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH6186-5T technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 55V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 55V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 500% |
| Fall Time | 5s |
| Forward Current | 60mA |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Isolation Voltage-Max | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 55V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 55V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SFH6186-5T Datasheet
Download the complete datasheet for Vishay SFH6186-5T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

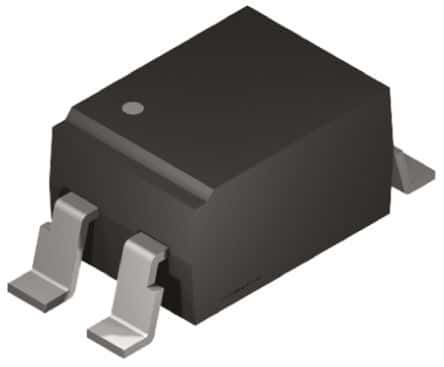

Product Images
