Single-channel DC input optocoupler with transistor output, featuring a 5.3kV isolation voltage and 55V collector-emitter voltage. This component offers a 500% current transfer ratio with a maximum collector current of 100mA and a forward current of 60mA. Packaged in a 4-pin PDIP for through-hole mounting, it operates within a temperature range of -55°C to 100°C and has a maximum power dissipation of 150mW.
PackageDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH618A-5 technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
55V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
500%
Forward Current
60mA
Height
3.81mm
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Lead Free
Lead Free
Length
4.83mm
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
55V
Max Power Dissipation
150mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
4000
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Voltage (DC)
6V
DC Rated Voltage
1.1V
Width
6.81mm
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SFH618A-5 Datasheet
Download the complete datasheet for Vishay SFH618A-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

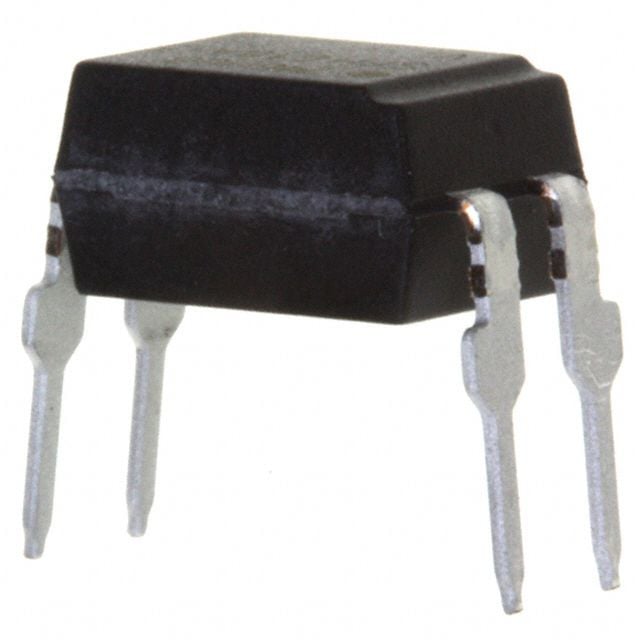

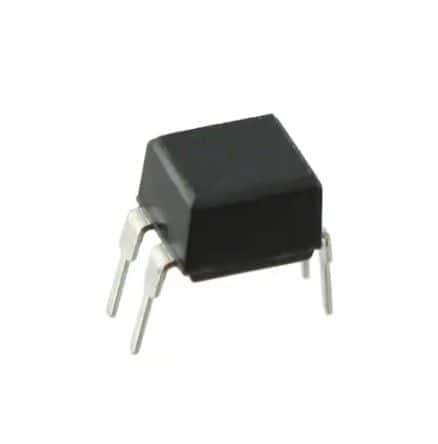

Product Images
