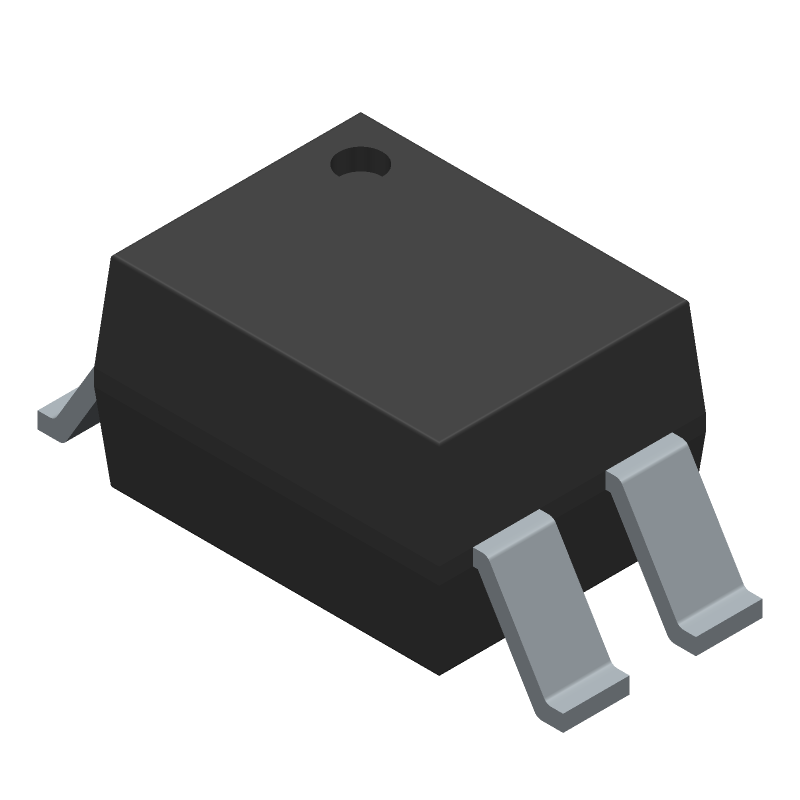

Surface mount, single-channel optocoupler featuring 5.3kV isolation voltage and a 70V collector-emitter voltage. Achieves a 320% current transfer ratio with 60mA input current and 50mA output current per channel. Operates across a -55°C to 100°C temperature range with a maximum power dissipation of 250mW.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Vishay SFH6206-3 technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 320% |
| Forward Current | 60mA |
| Input Current | 60mA |
| Input Type | AC |
| Isolation Voltage | 5.3kV |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 4000 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| DC Rated Voltage | 1.25V |
Compliance
| RoHS | Not CompliantNo |
