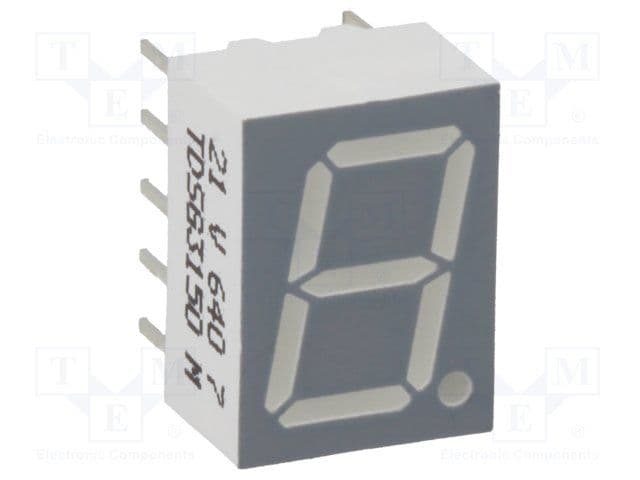

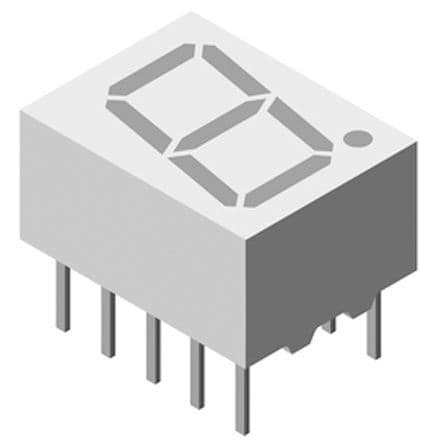

Green 8-segment LED display module, 1-digit, 6mm character width, featuring a 575nm wavelength and 6.8mcd luminous intensity. This through-hole mountable DIP package operates with a 20mA forward current and 2.4V supply voltage, offering a 50° viewing angle. With a temperature range of -40°C to 85°C and 480mW power dissipation, it is RoHS compliant.
PackageDIP
MountingThrough Hole, PCB
Power480mW
Quick Jump:
Technical Specifications
Vishay TDSG3150 technical specifications.
General
Package/Case
DIP
Character Width
6mm
Color
Green
Depth
9.7mm
Display Type
Segment
Forward Current
20mA
Height
0.5inch
Illumination Color
Green
Length
12.8mm
Luminous Intensity
6.8mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
480mW
Mount
Through Hole, PCB
Number of Characters
1
Number of Elements
8
Number of Positions
1
Number of Segments
7
Operating Supply Voltage
2.4V
Package Quantity
400
Packaging
Bulk
Power Consumption
480mW
Power Dissipation
480mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
15V
RoHS Compliant
Yes
Series
TDS.31
Viewing Angle
50°
Viewing Area (height)
10mm
Viewing Area Length
6mm
Wavelength
575nm
Width
0.372inch
Compliance
RoHS
Compliant
Datasheet
Vishay TDSG3150 Datasheet
Download the complete datasheet for Vishay TDSG3150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
