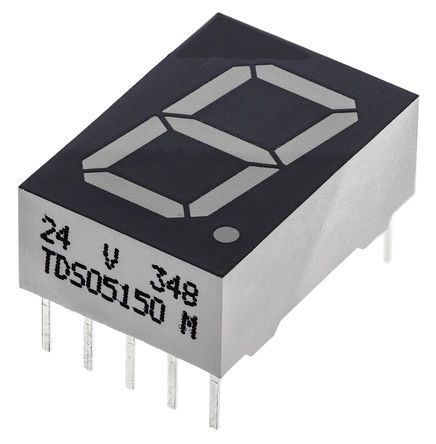

Single-digit, 7-segment LED display module featuring 8 LEDs in orange and red illumination. This through-hole mounted, 10-pin DIP component offers a character width of 7.4mm and a viewing area height of 13mm. Operating with a forward current of 25mA and a supply voltage of 2V, it provides a luminous intensity of 5mcd at a wavelength of 625nm. The module is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TDSO5150 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Character Width | 7.4mm |
| Color | Red, Orange |
| Depth | 17.5mm |
| Display Type | Segment |
| Forward Current | 25mA |
| Height | 7mm |
| Illumination Color | Orange |
| Length | 12.25mm |
| Luminous Intensity | 5mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 550mW |
| Mount | Through Hole, PCB |
| Number of Characters | 1 |
| Number of Elements | 8 |
| Number of Positions | 1 |
| Number of Segments | 7 |
| Operating Supply Voltage | 2V |
| Package Quantity | 400 |
| Packaging | Bulk |
| Power Dissipation | 550mW |
| Radiation Hardening | No |
| Reverse Voltage | 15V |
| RoHS Compliant | Yes |
| Series | TDS.51 |
| Viewing Angle | 50° |
| Viewing Area (height) | 13mm |
| Viewing Area Length | 7.4mm |
| Wavelength | 625nm |
| Width | 17.5mm |
| RoHS | Compliant |
