Through-hole mounted blue LED emitter with a 3.2mm diameter and 4.5mm height. Features a clear, dome-shaped lens and a 22° viewing angle. Operates with a 20mA forward current and 3.9V DC rated voltage, offering 50lm luminous flux and 50mcd luminous intensity at a 466nm wavelength. This RoHS compliant component has a maximum power dissipation of 100mW and an operating temperature range of -40°C to 100°C.
PackageRadial
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Vishay TLHB4200 technical specifications.
General
| Package/Case | Radial |
| Color | Blue |
| Diameter | 3.2mm |
| Forward Current | 20mA |
| Height | 4.5mm |
| Illumination Color | Blue |
| Lead Free | Lead Free |
| Lens Style | Dome, Clear, Cylindrical, Round, Diffused, Colored, Circular |
| Lens Transparency | Clear |
| Luminous Flux | 50lm |
| Luminous Intensity | 50mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of LEDs | 1 |
| Package Quantity | 5000 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Viewing Angle | 22° |
| DC Rated Voltage | 3.9V |
| Wavelength | 466nm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TLHB4200 Datasheet
Download the complete datasheet for Vishay TLHB4200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

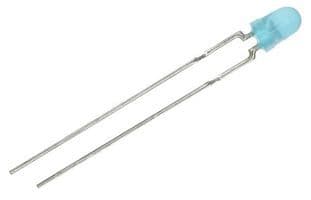

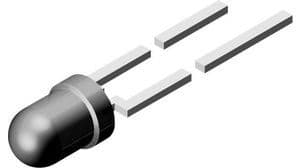

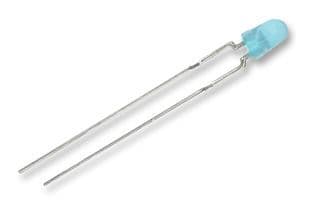

Product Images
