Blue diffused 3mm round through-hole LED emitter. Features a 3.2mm diameter and 6.1mm height, with a 3mm lens size. Operates with a 20mA forward current and 3.9V DC rated voltage, offering 15mcd luminous intensity at a 466nm wavelength. This RoHS compliant component has a 30° viewing angle and a maximum power dissipation of 100mW, suitable for operation between -40°C and 100°C.
PackageT
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Vishay TLHB4400 technical specifications.
General
| Package/Case | T |
| Color | Blue |
| Depth | 3.2mm |
| Diameter | 3.2mm |
| Forward Current | 20mA |
| Height | 6.1mm |
| Illumination Color | Blue |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Size | 3mm |
| Lens Style | Round, Domed, Dome, Diffused, Colored, Circular, Tinted |
| Lens Transparency | Diffused |
| Luminous Intensity | 15mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Wavelength-Nom | 466nm |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 30° |
| DC Rated Voltage | 3.9V |
| Wavelength | 466nm |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TLHB4400 Datasheet
Download the complete datasheet for Vishay TLHB4400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

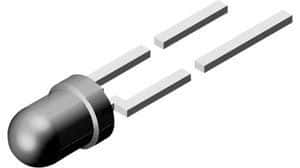

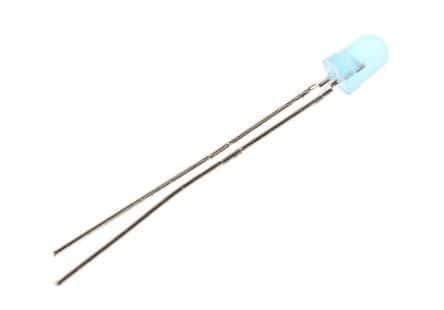

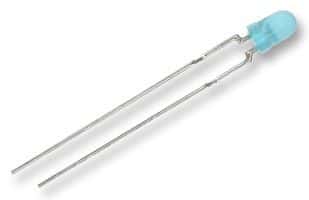

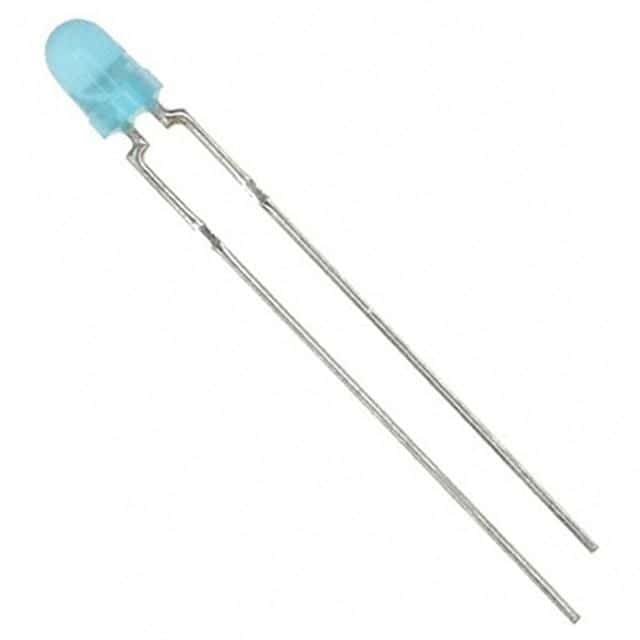

Product Images
