Green LED emitter, through-hole mount, featuring a 5mm clear, tinted, domed lens. Emits green light with a luminous intensity of 50mcd at a forward current of 10mA and a DC rated voltage of 2.4V. Operates within a temperature range of -20°C to 100°C, with a maximum reverse voltage of 15V and power dissipation of 100mW. Wavelength is 565nm, with a viewing angle of 28°. RoHS compliant.
PackageRadial
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Vishay TLHG5205 technical specifications.
General
| Package/Case | Radial |
| Color | Green |
| Depth | 5.8mm |
| Forward Current | 10mA |
| Height | 12.2mm |
| Illumination Color | Green |
| Lead Length | 24mm |
| Length | 5.8mm |
| Lens Size | 5mm |
| Lens Style | Clear, Tinted, Dome, Round, Domed, Diffused, Colored, Circular |
| Lens Transparency | Clear |
| Luminous Intensity | 50mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 15V |
| RoHS Compliant | Yes |
| Viewing Angle | 28° |
| DC Rated Voltage | 2.4V |
| Wavelength | 565nm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TLHG5205 Datasheet
Download the complete datasheet for Vishay TLHG5205 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

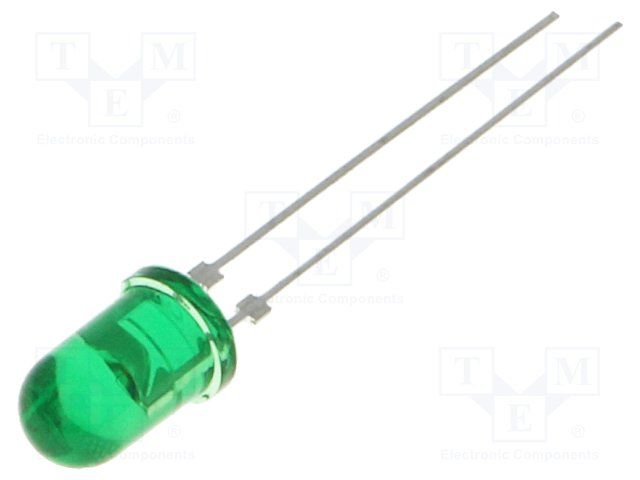

Product Images
