Orange Uni-Color LED emitter, 609nm wavelength, 160° viewing angle, and 80mcd luminous intensity. Features a 2-pin SMD package (0603/1608) with diffused rectangular lens, designed for surface mounting. Operates with a 20mA forward current and 6V reverse voltage, offering a power dissipation of 90mW. Suitable for a wide temperature range from -40°C to 100°C, this lead-free and RoHS compliant component is supplied on tape and reel.
Package0603
MountingSurface Mount
Power90mW
Quick Jump:
Technical Specifications
Vishay TLMO1100-GS08 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Orange |
| Depth | 0.8mm |
| Forward Current | 20mA |
| Height | 0.65mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Style | Rectangular, Square, Diffused |
| Luminous Intensity | 80mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 90mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Viewing Angle | 160° |
| Wavelength | 609nm |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TLMO1100-GS08 Datasheet
Download the complete datasheet for Vishay TLMO1100-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

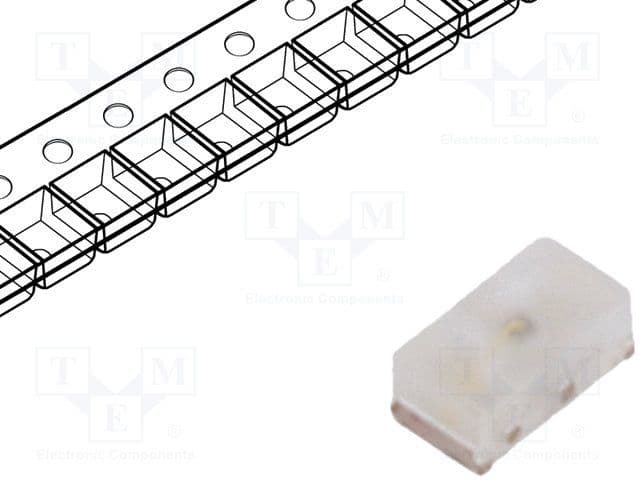

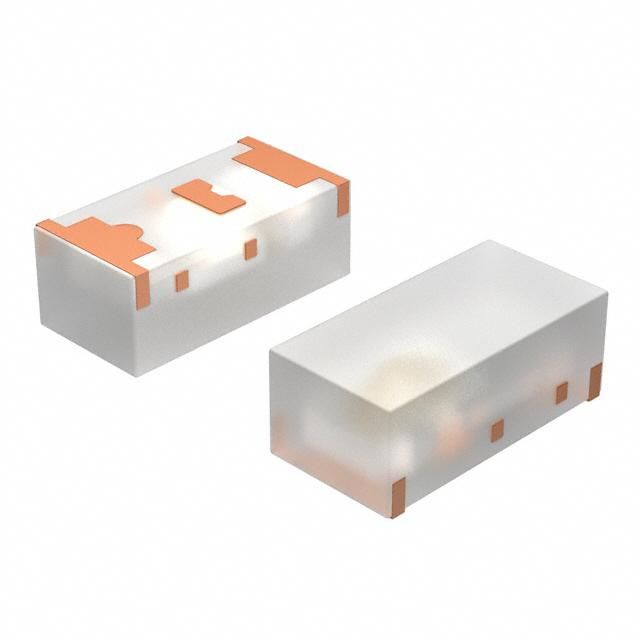

Product Images
