Infrared (IR) LED emitter featuring an 875nm wavelength and 30mW/sr radiant intensity. This through-hole component offers a 40° viewing angle and a 100mA forward current with a 3.2V DC rated voltage. Encased in a T-1 package with a diffused, colorless circular lens, it operates within a -40°C to 85°C temperature range and is RoHS compliant.
PackageT
MountingThrough Hole
Power180W
Quick Jump:
Technical Specifications
Vishay TSHA4401 technical specifications.
General
| Package/Case | T |
| Color | Clear |
| Depth | 3.2mm |
| Diameter | 3mm |
| Fall Time | 600ns |
| Forward Current | 100mA |
| Height | 4.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Style | Circular, Round, Diffused, Colorless |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Orientation | Top View |
| Package Quantity | 5000 |
| Packaging | Bulk |
| Power Dissipation | 180W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 40° |
| DC Rated Voltage | 3.2V |
| Wavelength | 875nm |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TSHA4401 Datasheet
Download the complete datasheet for Vishay TSHA4401 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

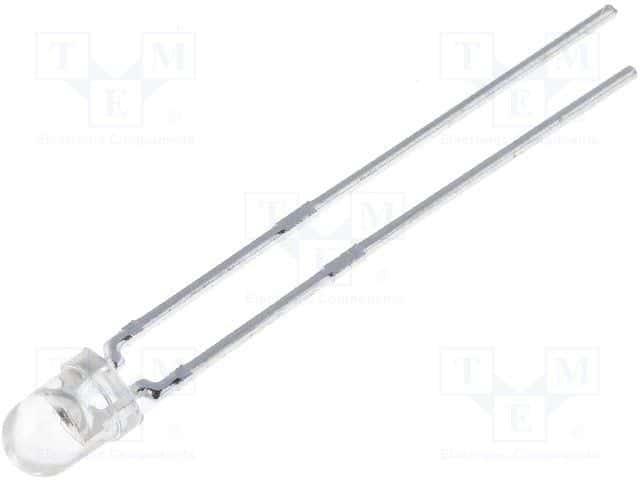

Product Images
