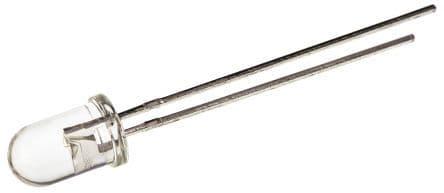

Infrared (IR) LED emitter with 850nm wavelength, delivering 1800mW/sr radiant intensity. Features a 20° viewing angle and a diffused, colorless circular lens. Operates with a 100mA forward current and a 5V reverse voltage, within a -40°C to 85°C temperature range. This RoHS compliant, lead-free component is housed in a T-1 3/4 package with a through-hole radial mount, suitable for top view orientation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TSHG6200 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay TSHG6200 technical specifications.
| Package/Case | Radial |
| Depth | 5.8mm |
| Fall Time | 13ns |
| Forward Current | 100mA |
| Lead Free | Lead Free |
| Length | 5.8mm |
| Lens Style | Circular, Round, Diffused, Colorless |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Orientation | Top View |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Power Dissipation | 180mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 20° |
| Wavelength | 850nm |
| RoHS | Compliant |
