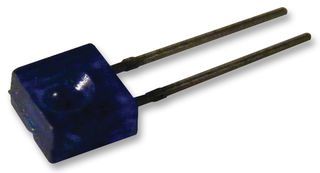

The TSKS5400-FSZ is a radial LED emitter with a DC rated voltage of 1.3V and a forward current of 100mA. It has a power dissipation of 170mW and a reverse voltage of 6V. The device is RoHS compliant and has a maximum operating temperature of 85°C. It is available in a package quantity of 2000 and is packaged in tape and reel. The LED emitter has a viewing angle of 60° and a wavelength of 950nm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TSKS5400-FSZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay TSKS5400-FSZ technical specifications.
| Package/Case | Radial |
| Depth | 2.65mm |
| Forward Current | 100mA |
| Input Current | 2mA |
| Length | 5mm |
| Lens Style | Circular |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Orientation | Side View |
| Output Voltage | 200mV |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 170mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Viewing Angle | 60° |
| DC Rated Voltage | 1.3V |
| Wavelength | 950nm |
| RoHS | Compliant |
