Current350uA
MountingThrough Hole
Quick Jump:
Technical Specifications

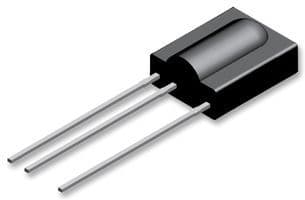

Vishay TSOP31536 technical specifications.
General
Height
12.5mm
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole
Operating Supply Current
350uA
Orientation
Side View
Output Current
5mA
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Sensing Distance
45m
Supply Current
350uA
Width
5.8mm
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay TSOP31536 Datasheet
Download the complete datasheet for Vishay TSOP31536 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
