Miniature, through-hole mounted logic output photo IC in a plastic module package. Features a 45° viewing angle and 950nm wavelength, with a sensing distance of 45m. Operates from a 2.7V to 5.5V supply voltage, consuming a maximum of 450µA operating supply current. Maximum power dissipation is 10mW, with an output current of 5mA. Operating temperature range is -25°C to 85°C.
PackageModule
Current450uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay TSOP34836 technical specifications.
General
Package/Case
Module
Height
6.95mm
Lead Free
Lead Free
Lead Length
23.6mm
Length
6mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
10mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Operating Supply Current
350uA
Orientation
Side View
Output Current
5mA
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Sensing Distance
45m
Supply Current
450uA
Viewing Angle
45°
Wavelength
950nm
Width
5.6mm
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay TSOP34836 Datasheet
Download the complete datasheet for Vishay TSOP34836 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

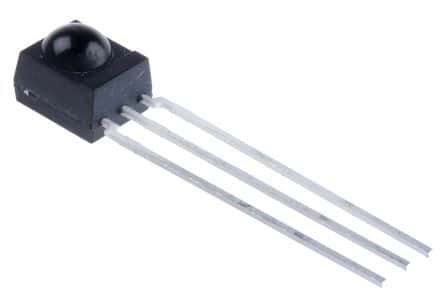

Product Images
