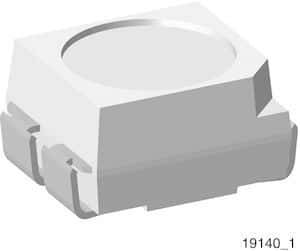

Bi-color LED emitter featuring green and red illumination, with peak wavelengths of 565nm and 635nm respectively. This surface-mount component utilizes a 3-pin PLCC package with a diffused, clear lens style. It operates with a 30mA forward current and a 6V reverse voltage, offering a luminous intensity of 6mcd and a wide 120° viewing angle. Designed for PCB mounting, it supports a temperature range from -40°C to 100°C and is RoHS compliant.
PackagePLCC
MountingSurface Mount, PCB
Power100mW
Quick Jump:
Technical Specifications
Vishay VLMV3100-GS08 technical specifications.
General
| Package/Case | PLCC |
| Color | Green, Red |
| Depth | 3mm |
| Forward Current | 30mA |
| Height | 1.85mm |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Length | 2.8mm |
| Lens Style | Clear, Round, Flat, Circular, Diffused |
| Lens Transparency | Clear |
| Luminous Intensity | 6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Series | VLM.3 |
| Viewing Angle | 120° |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
