General purpose optocoupler featuring phototransistor output with base connection. Offers 4kV isolation voltage and a 70V collector-emitter voltage. Maximum collector current is 100mA with a 60mA maximum input current. Operates within a -40°C to 100°C temperature range and is available in a lead-free SOIC-8 surface mount package.
PackageSOIC
MountingSurface Mount
Power240mW
Quick Jump:
Technical Specifications
Vishay VO207AT technical specifications.
General
| Package/Case | SOIC |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 200% |
| Fall Time | 2us |
| Forward Current | 60mA |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 240mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 240mW |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VO207AT Datasheet
Download the complete datasheet for Vishay VO207AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

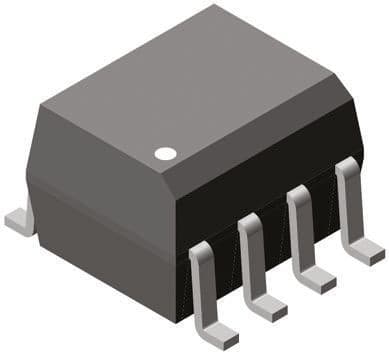

Product Images
