Single-channel optocoupler with Triac AC output, featuring a 600V output voltage and 100mA RMS output current. Designed for zero-crossing and random phase applications, this component offers 5.3kV isolation voltage and operates across a -55°C to 100°C temperature range. It requires 30mA input current at a nominal 1.2V and is housed in a 6-pin DIP package for through-hole mounting. Approvals include UL, CSA, and VDE, with RoHS compliance.
PackageDIP
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Vishay VO3063 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | DIP |
| Forward Current | 60mA |
| Hold Current | 200uA |
| Input Current | 30mA |
| Isolation Voltage | 5.3kV |
| Lead Free | Lead Free |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Nominal Input Voltage | 1.2V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 100mA |
| Output Voltage | 600V |
| Packaging | Rail/Tube |
| Power Consumption | 100mW |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RMS Current (Irms) | 100mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VO3063 Datasheet
Download the complete datasheet for Vishay VO3063 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

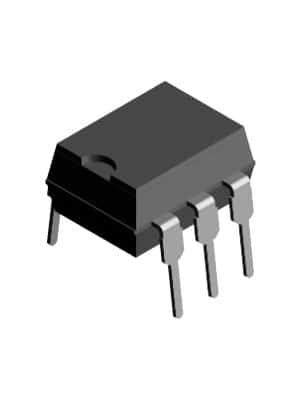

Product Images
