General purpose optocoupler featuring a single channel transistor output. This surface mount device offers a 5kV isolation voltage and a 70V collector-emitter breakdown voltage. It operates with a DC input type, accepting up to 60mA forward current, and provides an output current of 50mA per channel. Key specifications include a 260% current transfer ratio and a maximum power dissipation of 70mW, with an operating temperature range of -55°C to 110°C.
PackageSMD/SMT
MountingSurface Mount, Through Hole
Power70mW
Quick Jump:
Technical Specifications
Vishay VO615A-8X017T technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 70V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 260% |
| Fall Time | 4.7us |
| Forward Current | 60mA |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Max Collector Current | 50mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 70mW |
| Mount | Surface Mount, Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 70mW |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VO615A-8X017T Datasheet
Download the complete datasheet for Vishay VO615A-8X017T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

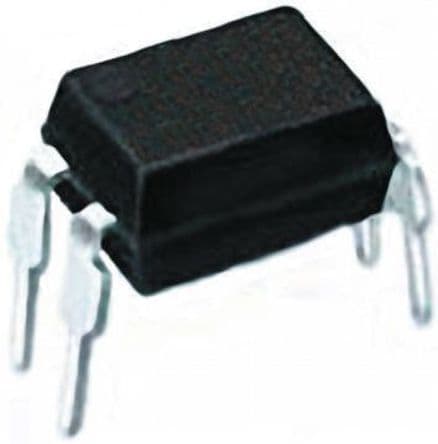

Product Images
