Surface mount optocoupler featuring a single-channel Triac AC output. Offers a 600V maximum output voltage and 70mA RMS output current. Operates with a nominal input voltage of 1.2V and a forward current of 10mA, requiring 60mA input current. Provides 3.75kV isolation voltage and a 300mW power dissipation. Suitable for zero-crossing applications, this RoHS compliant component is supplied in a 4-pin SOP package on tape and reel.
PackageSOP
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
Vishay VOM3052T technical specifications.
General
| Package/Case | SOP |
| Forward Current | 10mA |
| Hold Current | 300uA |
| Input Current | 60mA |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 600V |
| Max Power Dissipation | 300mW |
| Mount | Surface Mount |
| Nominal Input Voltage | 1.2V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 70mA |
| Output Voltage | 600V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RMS Current (Irms) | 70mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VOM3052T Datasheet
Download the complete datasheet for Vishay VOM3052T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

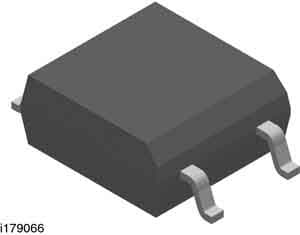

Product Images
