General purpose optocoupler featuring a single channel with logic output. This surface mount device offers 3.75kV isolation voltage and a 1 Mbps data rate. It operates with a 25mA forward current and 16mA input current, providing an 8mA maximum collector current. The component boasts a 30% current transfer ratio and is RoHS compliant.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VOM452T technical specifications.
General
| Package/Case | SOP |
| Current Transfer Ratio | 30% |
| Forward Current | 25mA |
| Input Current | 16mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Max Collector Current | 8mA |
| Max Input Current | 25mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 25V |
| Max Power Dissipation | 45mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 8mA |
| Output Voltage | 500mV |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VOM452T Datasheet
Download the complete datasheet for Vishay VOM452T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

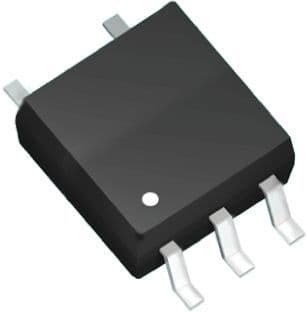

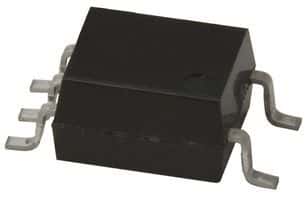

Product Images
