The VOM617A-4X001T is a SOP packaged optocoupler with a collector-emitter saturation voltage of 400mV and a maximum collector current of 100mA. It operates over a temperature range of -55°C to 110°C and is RoHS compliant. The device features a current transfer ratio of 320% and an isolation voltage of 3.75kV.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VOM617A-4X001T technical specifications.
General
| Package/Case | SOP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 320% |
| Fall Time | 12us |
| Forward Current | 60mA |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 170mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 100mA |
| Output Voltage | 80V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | VOM61xA |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VOM617A-4X001T Datasheet
Download the complete datasheet for Vishay VOM617A-4X001T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

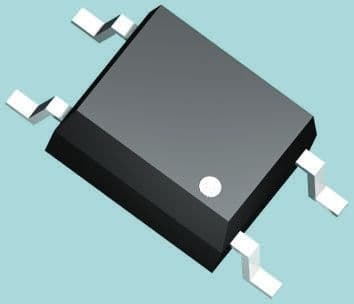

Product Images
