General purpose optocoupler featuring 3.75kVrms isolation voltage and a single channel. This surface mount device offers a 100mA max collector current and 60mA max input current, with a 160% current transfer ratio. It operates within a -55°C to 110°C temperature range and has a collector emitter breakdown voltage of 80V. The component is housed in a compact SOP package, measuring 4.4mm in length, 3.85mm in width, and 2mm in height.
PackageSOP
MountingSurface Mount
Power170mW
Quick Jump:
Technical Specifications
Vishay VOM617A-7T technical specifications.
General
| Package/Case | SOP |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 160% |
| Fall Time | 12us |
| Forward Current | 5mA |
| Height | 2mm |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 170mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 100mA |
| Output Voltage | 80V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 170mW |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| RoHS Compliant | Yes |
| Series | VOM61xA |
| Width | 3.85mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VOM617A-7T Datasheet
Download the complete datasheet for Vishay VOM617A-7T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

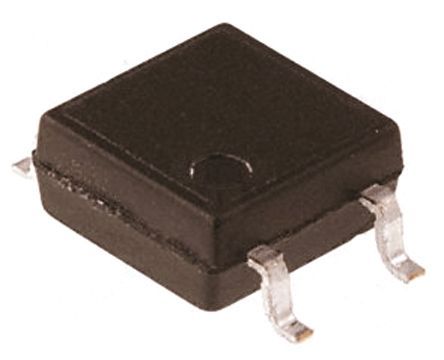

Product Images
