Technical Specifications
Vishay VSMB2000X01 technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 2.3mm |
| Fall Time | 15ns |
| Forward Current | 100mA |
| Lead Free | Lead Free |
| Length | 2.3mm |
| Lens Style | Dome, Diffused, Colorless, Circular |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 1.35V |
| Orientation | Top View |
| Packaging | Tape and Reel |
| Power Dissipation | 160mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 24° |
| Wavelength | 940nm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VSMB2000X01 Datasheet
Download the complete datasheet for Vishay VSMB2000X01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

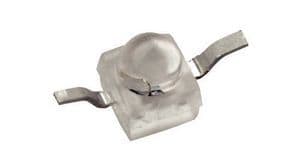

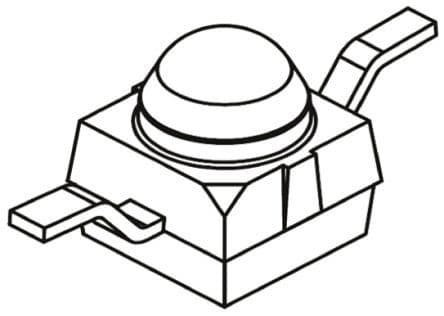

Product Images
