Radial leaded metal foil resistor offering 20kR resistance with a precise 0.005% tolerance. Features a 600mW power rating and a 300V voltage rating, operating across a wide temperature range of -55°C to 125°C. The component has a lead pitch of 3.81mm and dimensions of 7.62mm (length) x 2.67mm (width) x 8.28mm (depth). This moisture-resistant component is suitable for through-hole applications.
PackageRadial
Resistance20kR
Voltage Rating300V
Quick Jump:
Technical Specifications
VPG Foil Resistors Y145320K0000V9L technical specifications.
General
| Package/Case | Radial |
| Depth | 8.28mm |
| Features | Moisture Resistant |
| Height | 0.336inch |
| Lead Pitch | 3.81mm |
| Length | 7.62mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600mW |
| Number of Terminations | 2 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 20kR |
| Resistance Tolerance | 0.005% |
| Resistor Type | Metal Foil |
| RoHS Compliant | No |
| Series | Z |
| Technology | METAL FOIL |
| Termination | Radial |
| Tolerance | 0.005% |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 2.67mm |
Compliance
| RoHS | Not Compliant |
Datasheet
VPG Foil Resistors Y145320K0000V9L Datasheet
Download the complete datasheet for VPG Foil Resistors Y145320K0000V9L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

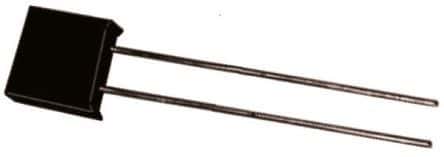

Product Images
