General purpose variable resistor with 500 Ohm resistance and 5% tolerance. Features a metal foil resistor type, 250mW maximum power dissipation, and a 250V voltage rating. This through-hole mount component has PC pin terminations and a 21-turn adjustment. Operating temperature range is -55°C to 150°C.
PackageMetal
Resistance500R
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
VPG Foil Resistors Y4053500R000J0L technical specifications.
General
| Package/Case | Metal |
| Depth | 4.45mm |
| Height | 6.35mm |
| Length | 6.35mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Turns | 21 |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 500R |
| Resistance Tolerance | 5% |
| Resistor Type | Metal Foil |
| RoHS Compliant | Yes |
| Series | 1240 |
| Termination | PC Pin |
| Tolerance | 5% |
| Voltage Rating | 250V |
| Weight | 0.01411oz |
| Width | 4.45mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y4053500R000J0L Datasheet
Download the complete datasheet for VPG Foil Resistors Y4053500R000J0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

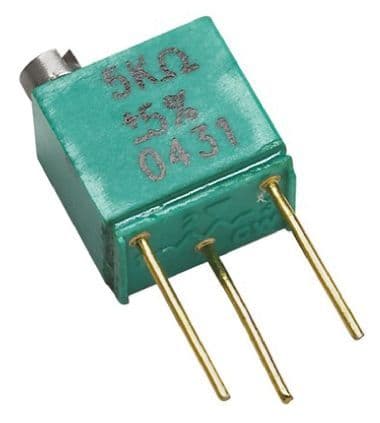

Product Images
