2-position shrouded header, male, right-angle, through-hole mount with a 3.5mm pitch. Features copper contacts with tin plating, rated for 10A and 300V. Constructed with a grey polyamide insulation material, achieving UL94 V-0 flammability. Operating temperature range from -60°C to 100°C.
Voltage Rating300V
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Wago 734-162 technical specifications.
General
Color
Grey
Contact Material
Copper
Contact Plating
Tin
Current Rating
10A
Flammability Rating
UL94 V-0
Gender
Male
Height
12.3mm
Housing Color
Grey
Insulation Material
Polyamide
Lead Free
Lead Free
Length
10.3mm
Max Operating Temperature
100°C
Min Operating Temperature
-60°C
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Right Angle
Pitch
3.5mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
2140
Termination
Solder
Voltage Rating
300V
Width
9.4mm
Compliance
RoHS
Compliant
Datasheet
Wago 734-162 Datasheet
Download the complete datasheet for Wago 734-162 to view detailed technical specifications.
No datasheet is available for this part.

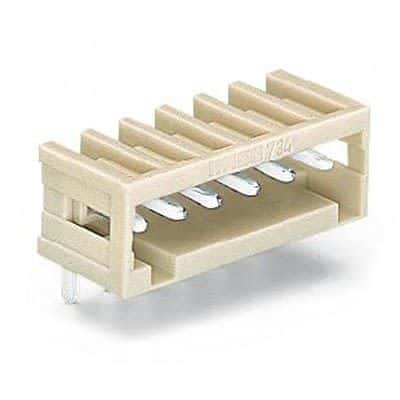

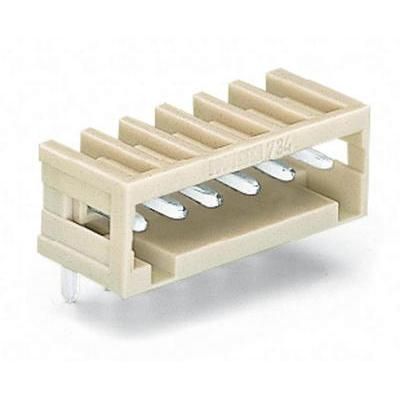

Product Images
