Six-position, two-row terminal block with 2.5mm pitch, featuring screw termination for cable mounting. Rated for 25A maximum current and 6kV voltage, with a 22AWG to 12AWG wire gauge range. Constructed with yellow plastic insulation, it operates from -60°C to 130°C and boasts a UL94 5VA flammability rating. Approvals include IEC, CSA, CE, and UR.
Voltage Rating6kV
Current Rating24A
MountingPanel, Chassis, Cable
Quick Jump:
Technical Specifications
Weidmuller 0273920000 technical specifications.
General
| Approvals | IEC, CSA, CE, UR |
| Color | Yellow |
| Current Rating | 24A |
| Flammability Rating | UL94 5VA |
| Height | 16.1mm |
| Housing Color | Yellow |
| Insulation Material | Plastic |
| Lead Free | Contains Lead |
| Length | 26.5mm |
| Max Current Rating | 25A |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -60°C |
| Mount | Panel, Chassis, Cable |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | MK |
| Termination | Screw |
| Voltage Rating | 6kV |
| Weight | 11.07g |
| Width | 15mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Weidmuller 0273920000 Datasheet
Download the complete datasheet for Weidmuller 0273920000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

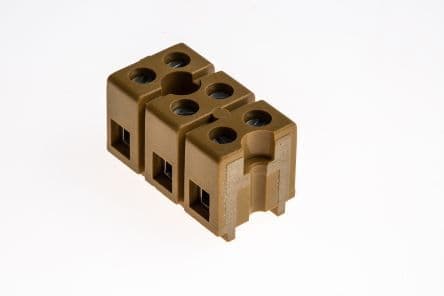

Product Images
