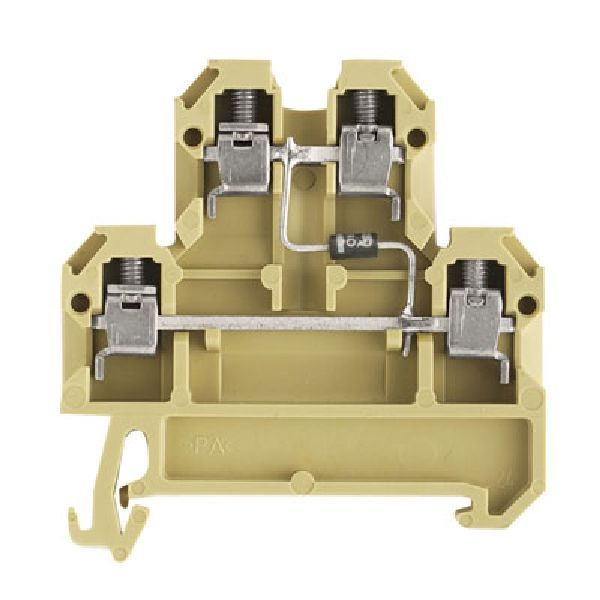

Two-level, four-position terminal block with screw termination, designed for DIN rail mounting. Features a 10A current rating and 380V voltage rating, accommodating wire gauges from 12AWG to 22AWG. Constructed from beige nylon insulation material, it boasts a flammability rating of UL94 V-2 and is RoHS compliant. Dimensions include a 50mm length, 6mm terminal width, and 52.5mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Weidmuller 0396660000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE |
| Color | Beige |
| Current Rating | 10A |
| Flammability Rating | UL94 V-2 |
| Height | 52.5mm |
| Housing Color | Beige |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 50mm |
| Material | Nylon |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SAK |
| Terminal Width | 6mm |
| Termination | Screw |
| Voltage Rating | 380V |
| Width | 6mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 12AWG |
| RoHS | Compliant |
