Feed-through terminal block for 6-14 AWG wire, featuring screw termination and a 10mm terminal width. This beige, nylon insulated component operates at 600V with a 50A current rating and 57A maximum current. It boasts a 10mm width, 45mm length, and 51.5mm height, with a UL94 V-2 flammability rating. Approvals include CSA, CE, UR, and IEC.
Voltage600V
Current50A
Voltage Rating8kV
Current Rating57A
Quick Jump:
Technical Specifications
Weidmuller 0443760000 technical specifications.
General
| Approvals | CSA, CE, UR, IEC |
| Color | Beige |
| Current | 50A |
| Current Rating | 57A |
| Flammability Rating | UL94 V-2 |
| Height | 51.5mm |
| Housing Color | Beige |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 45mm |
| Material | Nylon |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Package Quantity | 100 |
| RoHS Compliant | No |
| Series | SAK |
| Terminal Width | 10mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 8kV |
| Width | 10mm |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 6AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Weidmuller 0443760000 Datasheet
Download the complete datasheet for Weidmuller 0443760000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

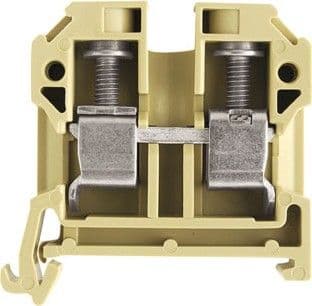

Product Images
