Feed-through terminal block for flexible flat cable (FFC) and flexible printed circuit (FPC) applications, featuring ZIF/LIF technology. Offers a 32A maximum current rating and 300V voltage rating, supporting wire gauges from 12 to 26 AWG. Constructed with beige nylon insulation and a straight, 2-level, 4-position configuration. Operates within a temperature range of -50°C to 100°C and meets IEC, CSA, CE, and UR approvals.
Voltage300V
Current27A
Voltage Rating6kV
Current Rating32A
Quick Jump:
Technical Specifications
Weidmuller 0590160000 technical specifications.
General
| Approvals | IEC, CSA, CE, UR |
| Color | Beige |
| Current | 27A |
| Current Rating | 32A |
| Flammability Rating | UL94 V-2 |
| Height | 60.5mm |
| Housing Color | Beige |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 50mm |
| Material | Nylon |
| Max Current Rating | 32A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -50°C |
| Mount | Cable |
| Number of Circuits | 2 |
| Number of Contacts | 4 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | SAK |
| Terminal Width | 6mm |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 6kV |
| Width | 6mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Weidmuller 0590160000 Datasheet
Download the complete datasheet for Weidmuller 0590160000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

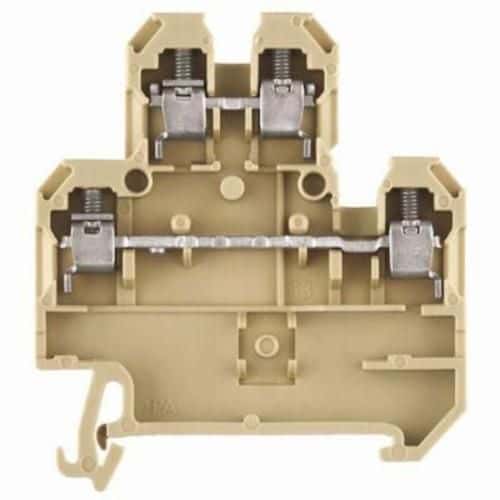

Product Images
