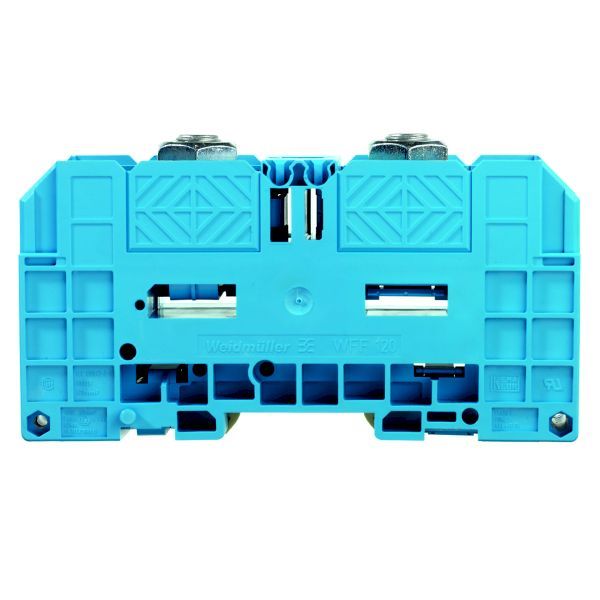

Feed-through terminal block featuring 2 positions and 2 circuits, designed for DIN rail mounting. Rated for 269A and 1kV, with a maximum operating temperature of 120°C and a minimum of -50°C. Constructed with blue thermoplastic insulation material, it boasts a UL94 V-0 flammability rating and is lead-free and RoHS compliant. Approvals include CSA, CE, UR, and NEMKO.
Voltage1kV
Current234A
Voltage Rating1kV
Current Rating269A
Quick Jump:
Technical Specifications
Weidmuller 1028580000 technical specifications.
General
| Approvals | CSA, CE, UR, NEMKO |
| Color | Blue |
| Current | 234A |
| Current Rating | 269A |
| Flammability Rating | UL94 V-0 |
| Housing Color | Blue |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 132mm |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -50°C |
| Mount | DIN Rail |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | WFF |
| Terminal Width | 42mm |
| Termination | Stud |
| Voltage | 1kV |
| Voltage Rating | 1kV |
| Weight | 265.69g |
| Width | 42mm |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1028580000 Datasheet
Download the complete datasheet for Weidmuller 1028580000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
