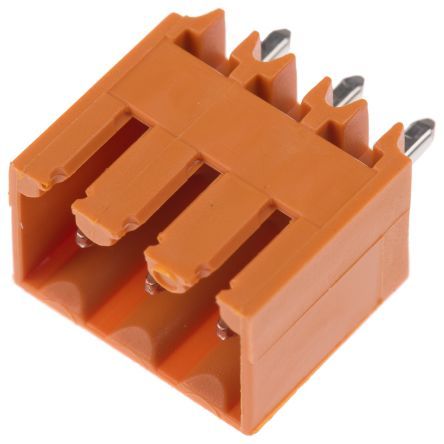

3-position shrouded header, vertical orientation, for board-to-board applications. Features 3.5mm pitch, solder termination, and through-hole mounting. Rated for 10A/300V, with a maximum operating temperature of 100°C. Constructed with CuSn contacts plated in tin. UL94 V-0 flammability rating and IP10 protection. RoHS compliant and lead-free.
Voltage300V
Current10A
Voltage Rating300V
Current Rating17A
Quick Jump:
Technical Specifications
Weidmuller 1604480000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Orange |
| Contact Material | CuSn |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 17A |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -50°C |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Box |
| Pitch | 0.138inch |
| Radiation Hardening | No |
| Ratings | IP10 |
| RoHS Compliant | Yes |
| Series | Omnimate SL |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
