22-position, 2-level vertical connector with 5mm pitch for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Features tin-plated copper alloy contacts, a 10A current rating, and a 300V voltage rating. Through-hole mounting with solder termination, housed in orange UL94 V-0 rated plastic. Operating temperature range from -50°C to 100°C, with CSA and UR approvals.
Voltage300V
Current10A
Voltage Rating300V
Current Rating9.5A
Quick Jump:
Technical Specifications
Weidmuller 1614900000 technical specifications.
General
Approvals
CSA, UR
Color
Orange
Contact Material
CuSn
Contact Plating
Tin
Current
10A
Current Rating
9.5A
Flammability Rating
UL94 V-0
Height
22mm
Housing Color
Orange
Lead Free
Lead Free
Length
57mm
Max Operating Temperature
100°C
Min Operating Temperature
-50°C
Mount
Through Hole
Number of Contacts
22
Number of Levels
2
Number of Poles
22
Number of Positions
22
Number of Positions Per Level
11
Number of Rows
2
Orientation
Vertical
Packaging
Box
Pitch
5mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
Omnimate SL
Termination
Solder
Voltage
300V
Voltage Rating
300V
Width
28.5mm
Compliance
RoHS
Compliant
Datasheet
Weidmuller 1614900000 Datasheet
Download the complete datasheet for Weidmuller 1614900000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

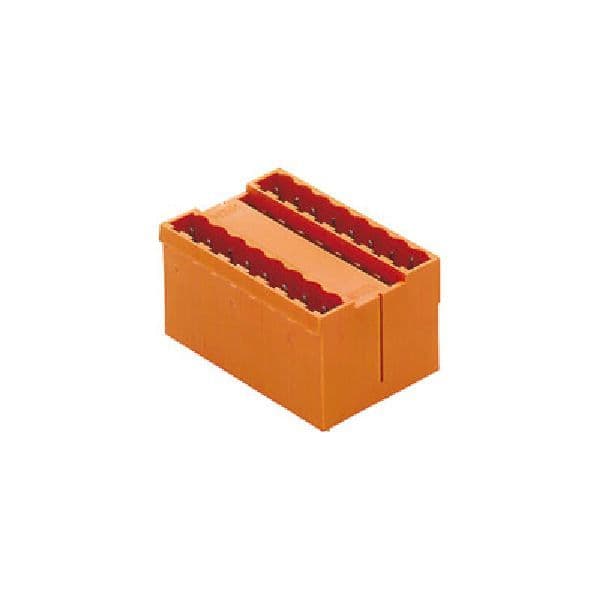

Product Images
