15-position, single-row, right-angle terminal block for cable mounting. Features a 3.5mm pitch and screw termination, accepting wire gauges from 14 to 28 AWG. Rated for 10A continuous current and 17A current rating, with a maximum operating voltage of 300V. Constructed with a copper alloy contact material and a black housing, achieving UL94 V-0 flammability rating. Operates within a temperature range of -50°C to 100°C and is IP20 rated. Approvals include CSA and UR, with RoHS compliance.
Voltage300V
Current10A
Voltage Rating300V
Current Rating17A
Quick Jump:
Technical Specifications
Weidmuller 1615760000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Black |
| Contact Material | Copper Alloy |
| Current | 10A |
| Current Rating | 17A |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -50°C |
| Mount | Free Hanging, Cable |
| Number of Circuits | 15 |
| Number of Contacts | 15 |
| Number of Levels | 1 |
| Number of Poles | 15 |
| Number of Positions | 15 |
| Number of Positions Per Level | 15 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Box |
| Pitch | 3.5mm |
| Radiation Hardening | No |
| Ratings | IP20 |
| RoHS Compliant | Yes |
| Series | Omnimate BL |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 7.5mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1615760000 Datasheet
Download the complete datasheet for Weidmuller 1615760000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

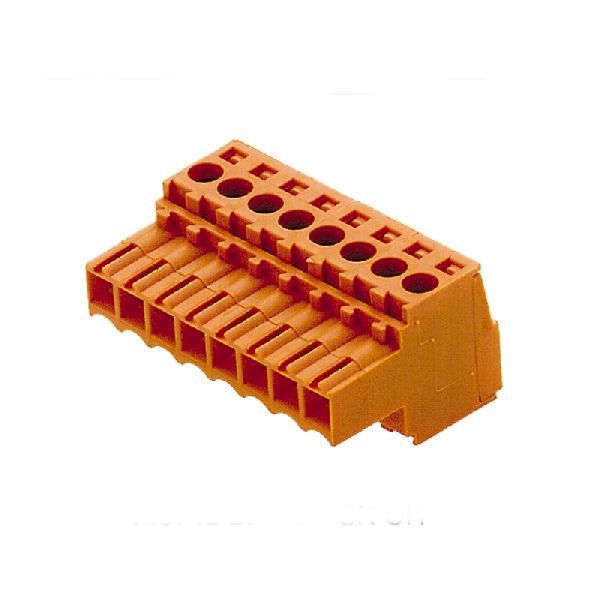

Product Images
